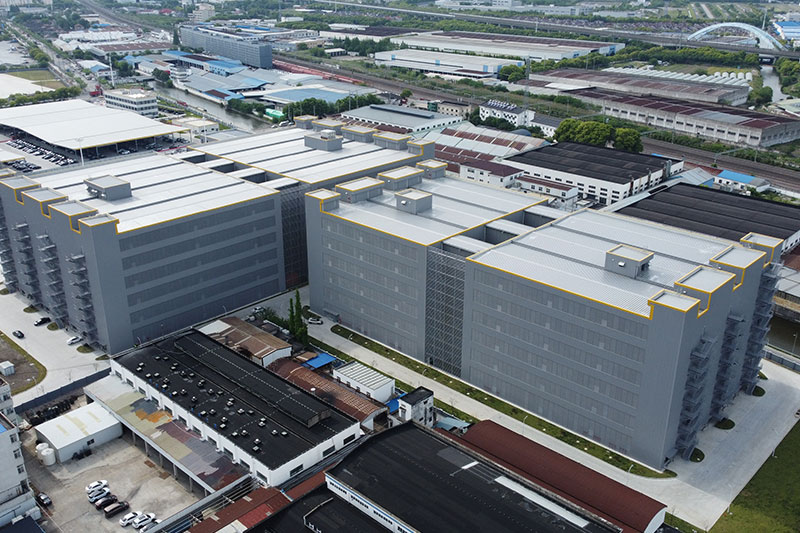

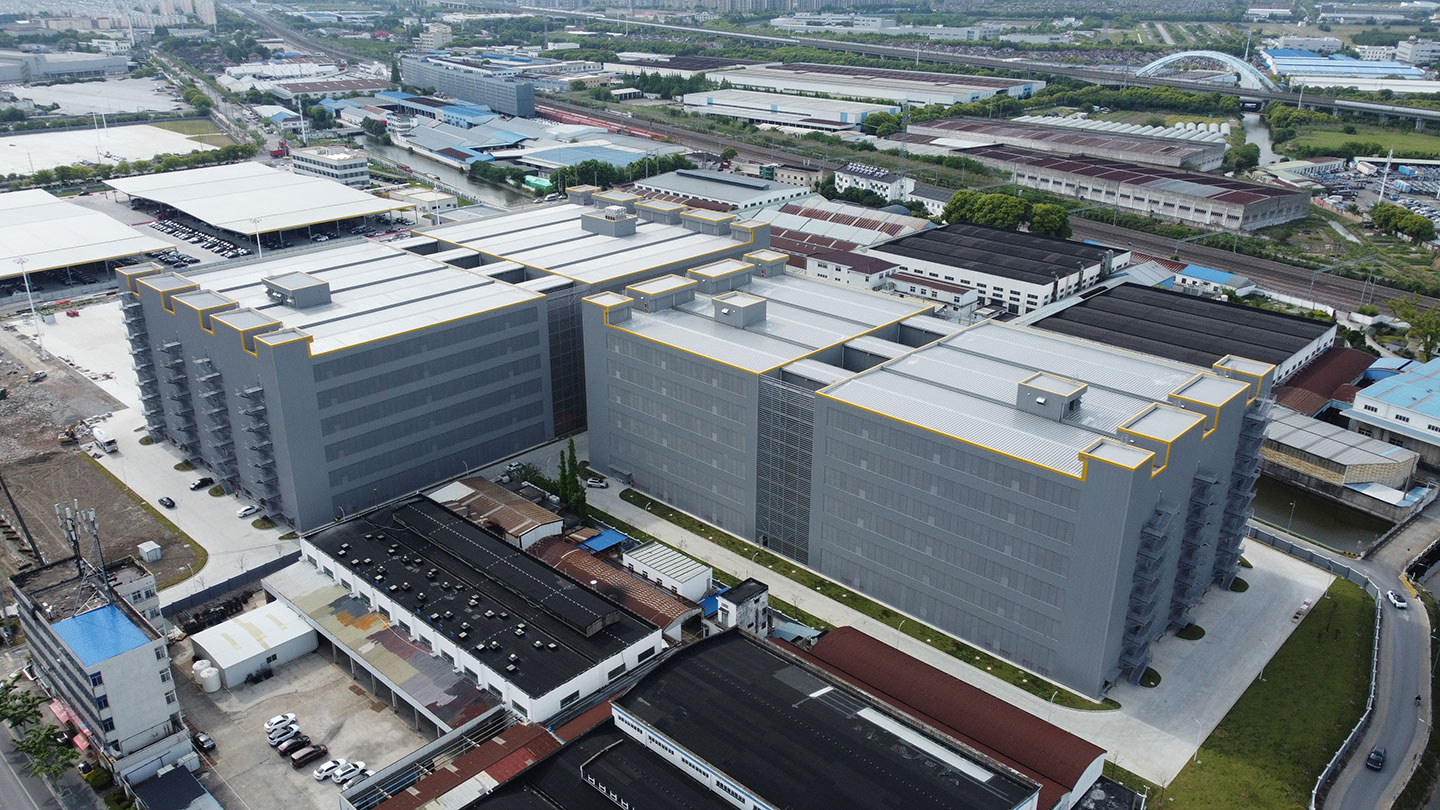

Volkswagen automatic parking project

Project Overview

Project Name

Volkswagen automatic parking project

Country

China

City

Shanghai

Application

automobile

System Type

Automatic vertical parking equipment

Total Parking Spaces

7315

Floors

12

User operation method

RFID, QR Code, WES

Project duration

2022.12.03-2023.12.27 (390 days)

Special Features

New vehiles, no license plate

Technical Specs

Vehicle Size

5100×2000×1550, Sedans. 1700 kg.
5100×2000×1750, SUVs, 2410 kg

Max Vehicle Weight

1700 kg/2410 kg

Retrieval Time

90 s

Automation Level

Automatic

Structure

Steel structure, Driven traction

Certifications

CE / ISO / SGS

Site Conditions

Clear Height

38.1 meters

Footprint

6840㎡(120m x 57m), 10564㎡(139m x 76m)

Onground/Underground/Both

Onground

Civil Constraints

Seismic resistance, waterproofing, foundation bearing capacity,high temperatures, hot and humid conditions,fire resistance
