The Vertical Rotary Parking System (PCX) (commonly known as the Rotary Carousel Parking System or Mechanical Smart Carousel) is the world's most space-efficient plug-and-play automated parking solution. Engineered specifically to extract maximum parking volume from highly restricted urban footprints, it acts like a Ferris wheel for automobiles. By stacking vehicles vertically in a continuous rotating loop, this rapid-deployment system is a high-yield asset for congested city plots, commercial storefronts, micro-parcels, and corporate perimeter zones.
1. Operating Principle: Continuous 360° Closed-Loop Rotation
The system operates on a high-precision vertical circulation mechanism, moving car platforms along a precise orbital loop perpendicular to the ground plane. Driven by a central command unit, the layout is split into synchronized mechanical actions:
· Vertical Orbital Circulation: Carriers or transporters are suspended within a heavy-duty closed loop. When a specific vehicle is requested, the intelligent drive system executes a smooth, continuous circular motion in a vertical plane, rotating the target car along the shortest orbital pathway (clockwise or counter-clockwise).

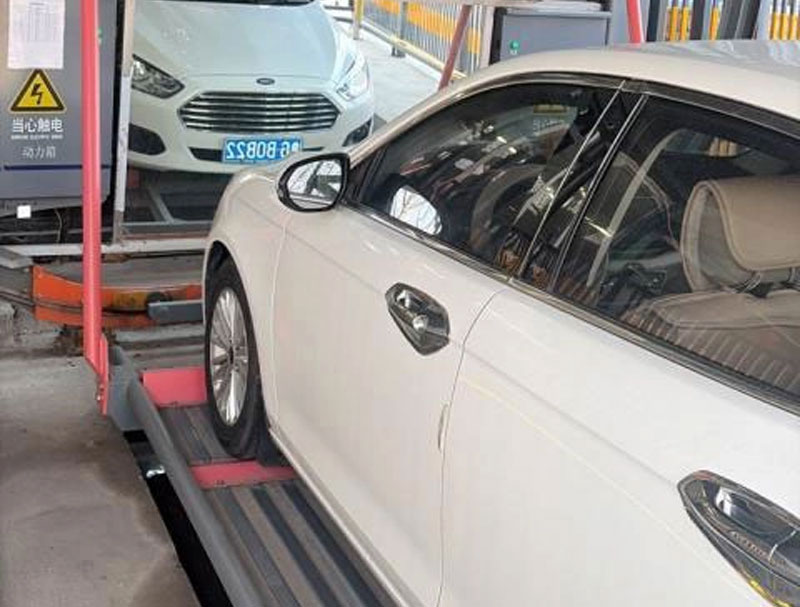

· Direct Ground-Level Interface: The entire loop circulates around a central axis, bringing the requested vehicle platform directly to the ground-level terminal. Drivers can pull straight into or out of the carriage without navigating ramps or multi-level concrete aisles.
· Integrated Multi-System Harmony: The continuous circular mechanism functions through the flawless integration of five engineering sub-assemblies: a heavy-duty structural metal frame, precise suspension transporters, a high-torque drive transmission, a computerized PLC control system, and a comprehensive redundant safety detection array.
2. Core System Architecture & Sub-Assemblies
Every Dayang rotary carousel garage is built with heavy-duty commercial-grade components designed for continuous operations and minimal structural downtime:
Core Sub-Assembly | Technical Specifications | Operational Benefit to Buyer |
Metal Structural Frame | Constructed from premium structural steel beams with anti-corrosion hot-dip galvanized coatings. | Provides uncompromising structural integrity, outstanding wind resistance, and a multi-decade operational lifespan outdoors. |

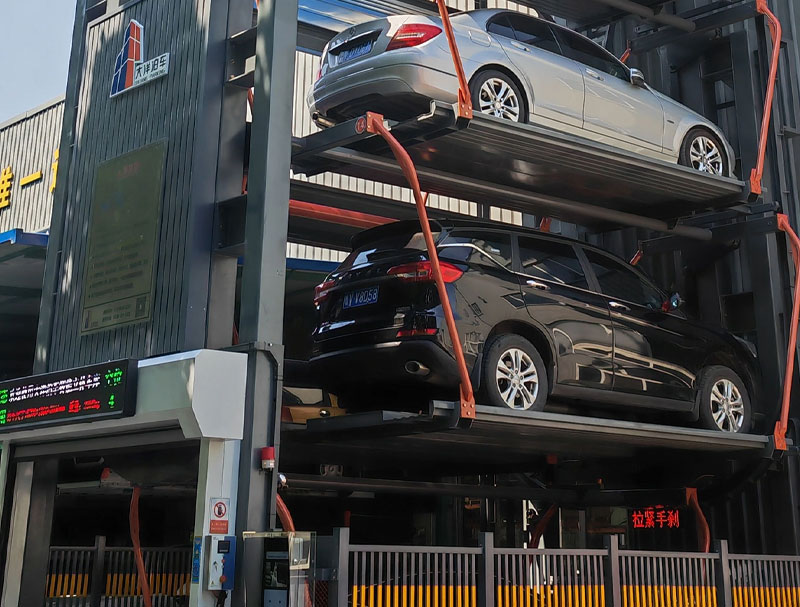

Smart Suspension Transporters | Heavy-duty anti-sway car platforms equipped with mechanical guidance rollers and tire alignment chocks. | Ensures vehicles remain perfectly level and completely stable throughout the entire 360-degree vertical rotation cycle. |

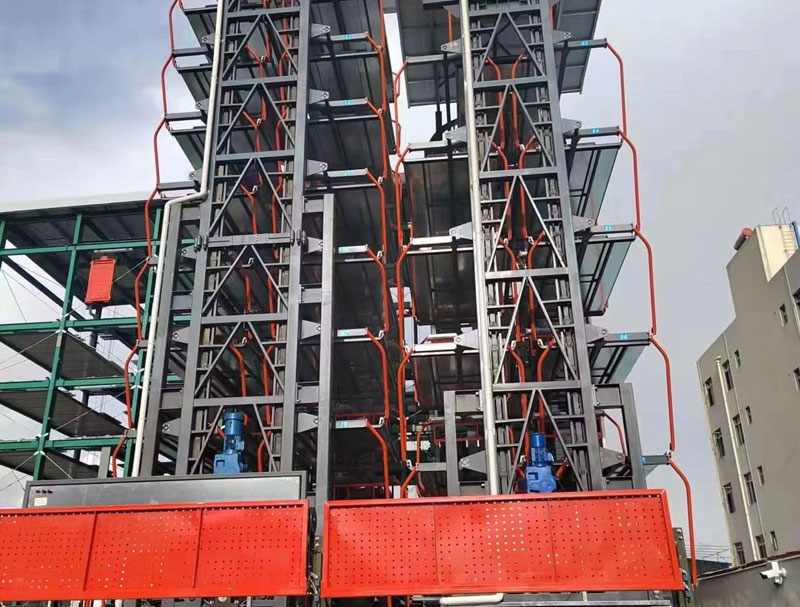

High-Torque Drive System | Powered by high-efficiency electric gear-motors combined with heavy-duty oversized drive chains. | Delivers exceptionally smooth, whisper-quiet acceleration, lower peak energy draw, and precise leveling accuracy. |
3. Key Features: Why the Rotary Carousel Dominates Urban Spaces

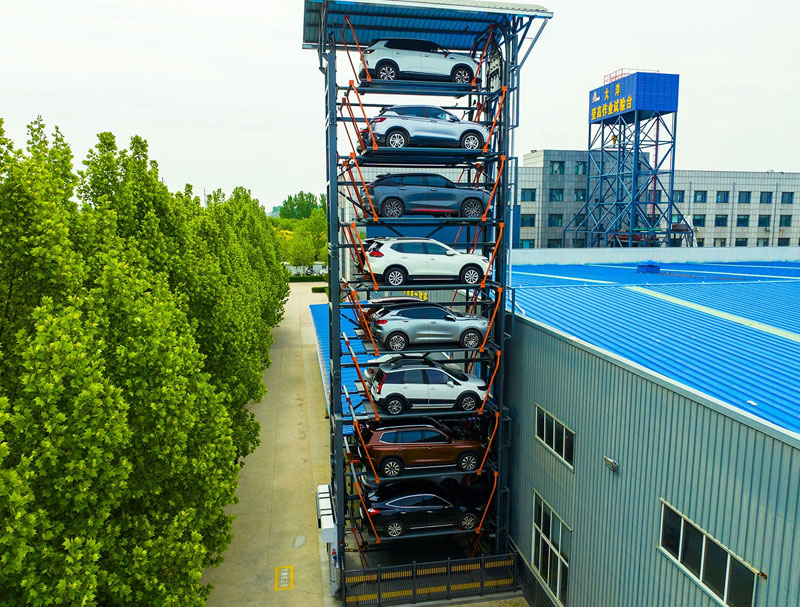

· Unmatched Footprint Optimization (Up to 10x Space ROI): The system is explicitly engineered for above-ground installation on micro-plots of land. In a standard footprint that typically accommodates only 2 traditional surface parking spaces, a single Dayang rotary tower can securely park 12 to 20 vehicles, multiplying land utilization up to 10-fold.
· Minimal Civil & Excavation Costs: Because it is deployed entirely above ground on a simple, flat concrete foundation pad, developers can completely skip deep excavations, complex underground shoring, drainage re-routing, and extensive structural civil works.
· Rapid Installation & Plug-and-Play Mobility: Featuring a highly modular steel framework, the system can be fully erected, wired, and commissioned in just a few days. Furthermore, if the land layout changes in the future, the entire structure can be disassembled and relocated with minimal asset loss.
· Comprehensive Safety Guard Matrix: Protected by multi-layered security barriers including smart photo-electric safety curtains (detecting improper entry), mechanical over-travel limit switches, emergency stop overrides, vehicle height/width lasers, and independent slack-chain monitoring sensors.
4. High-Value Targeting & Strategic Venues
Due to its self-contained design, lightning-fast setup, and small physical requirement, the Vertical Rotary series is an elite commercial choice for:
· Micro-Plots & Urban Commercial Corners: Perfect for downtown storefronts, tight car dealerships, restaurants, and shopping districts looking to instantly offer premium parking amenities.
· Corporate Perimeters & Business Parks: Fits effortlessly into narrow setbacks or existing open lot spaces to handle overflow employee or VIP parking.
· Hospitals & Municipal Offices: Provides rapid vehicle intake directly next to main entrance terminals on tightly constrained plots of land.
· Residential Real Estate Retrofits: Allows older multi-family residential complexes to add modern parking spaces without modifying their existing structural basements.
