Tower Parking System

Operating Principle: How It Works

The Tower Parking System (PCS) is the ultimate high-density, fully automated parking solution, designed like a high-rise building for cars. It operates on a sophisticated vertical lift and horizontal shift mechanism:

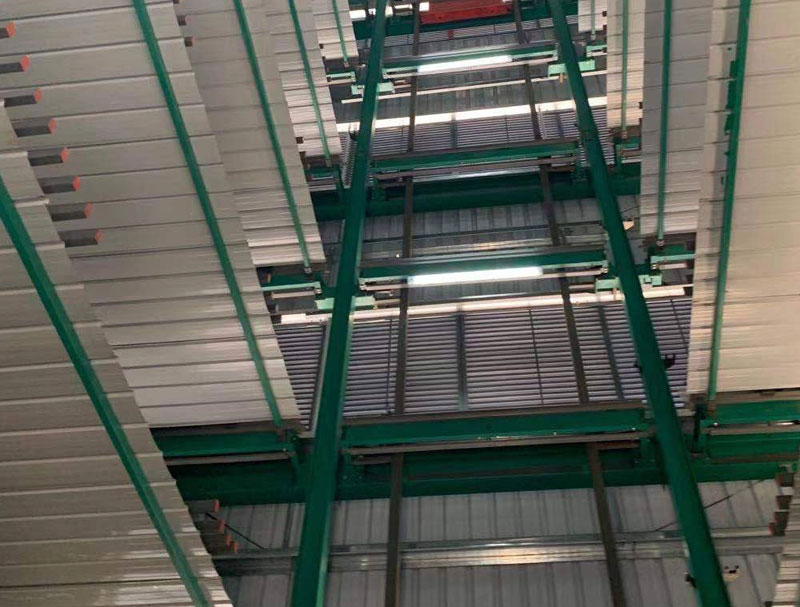

Optimized Matrix Structure: The tower is engineered in a compact rectangular configuration, typically featuring 3 columns per tower—a central lifting channel flanked by vehicle berths on both sides.

High-Speed Vertical Lifting: The central channel is equipped with a heavy-duty lifting system and a synchronized lifting comb/shuttle frame that rapidly transports vehicles to their designated levels.

Seamless Horizontal Transfer: Once at the correct level, the vertical lifting frame exchanges the vehicle with the transverse comb frame, shifting the car horizontally into its secure berth.

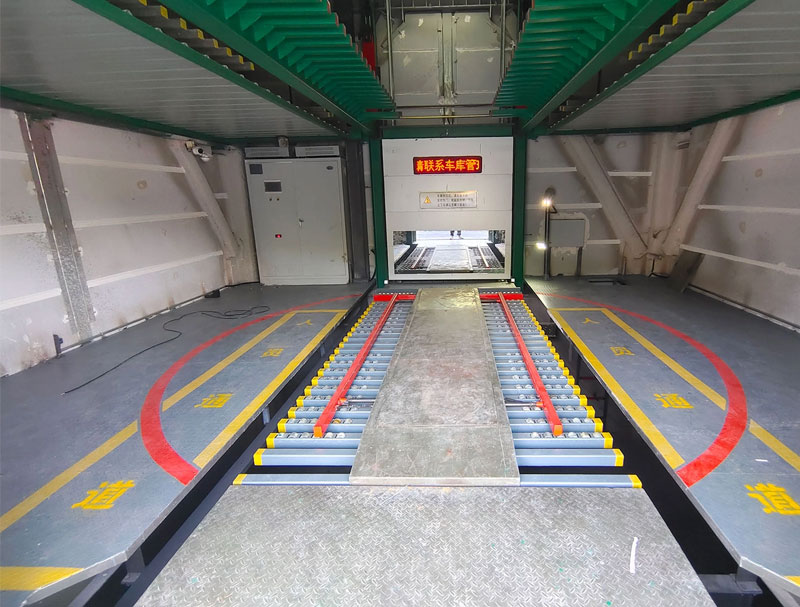

Built-In Smart Turntable: The ground-level entrance/exit room features an integrated, heavy-duty automatic turntable. Drivers can always enter and exit in a forward-facing direction—eliminating the need for reversing and dramatically improving the user experience and safety.

Key Equipment Features & Configurations

1. Flexible Heavy-Duty Drive Options

Engineered for continuous, high-frequency operation, the system can be tailored with two major commercial-grade drive types:

Traction Drive (Motor & Steel Cable): Ideal for ultra-high towers, delivering fast lifting speeds, smooth acceleration, and lower energy consumption.

Hydraulic Drive System: Perfect for medium-height configurations, offering high torque, robust reliability, and cost-effective maintenance.

2. Advanced Vehicle Exchange Technologies

We offer two cutting-edge, palletless exchange mechanisms to match your project’s technical requirements:

Comb-Tooth Exchange Form: Interlocking comb structures transfer the vehicle by its tires, ensuring fast cycle times and minimal mechanical wear.

Robot Clamp-Wheel / Wheel-Gripper Exchange: Advanced automated dollies securely clamp the vehicle's tires, adapting seamlessly to various wheelbases and vehicle lengths.

3. Highly Versatile Architectural Adaptability

Dayang’s tower parking garage can be customized to blend into any urban infrastructure or planning restriction:

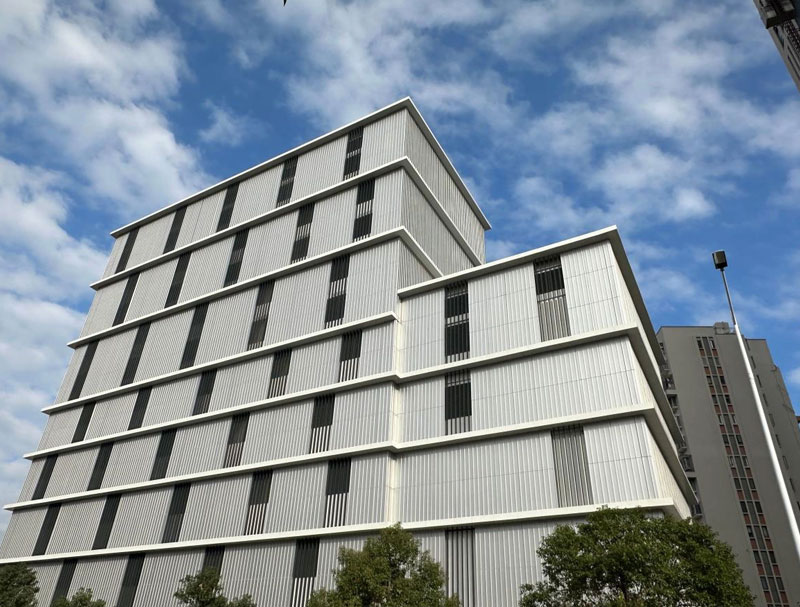

Above-Ground Towers: Standing as independent architectural landmarks or integrated into building facades.

Underground Shafts: Hidden entirely below ground to preserve surface aesthetics or green spaces.

Half Above & Half Underground: Maximizing spatial limits where headroom or digging depth is restricted.

4. Ideal Applications

Thanks to its ultra-small footprint (parking up to 60–70 cars in the space of just 2-3 traditional parking slots), this system is widely specified for:

Hospitals & Healthcare Centers (Where fast retrieval and high capacity are critical)

Government & Municipal Buildings

Corporate Headquarters & Commercial Hubs

High-Density Public Parking Lots
