Tilting Simple Parking Lift: Guide to Low-Clearance Vehicle Stacking
When ceiling height or overhead space is the primary obstacle to adding more parking, standard car lifts fall short. The Tilting Simple Parking Lift resolves this by angling the upper vehicle, capitalizing on the natural slope of a car's hood to squeeze two cars into ultra-low clearance areas.
1. How a Tilting Parking Lift Works
The tilting lift operates on a dependent, angled lifting mechanism that changes the geometry of stacked parking.

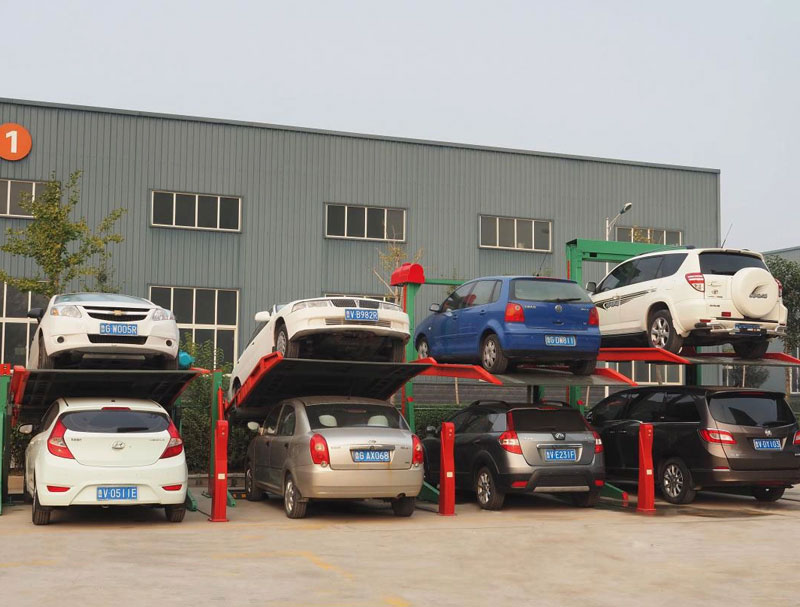

The Tilted Angular Platform: Instead of lifting a vehicle perfectly flat and parallel to the ground, the rear of the platform lifts higher than the front. This tilts the upper car forward at an angle (typically between 10° to 16°).
Dependent Operation: To access the vehicle on the upper tilted platform, the lower vehicle must first be driven out.
The Process: Once the ground space is clear, the operator lowers the platform. The platform swings downward and flattens out as it reaches the ground level, allowing the top vehicle to be driven safely off the ramp.
2. Core Advantages of Tilting Parking Lifts
Saves Ultimate Overhead Height: This is the biggest selling point. By taking advantage of the lower profile of a car's front hood, a tilting lift can operate successfully in ceilings as low as 2.8 to 3.0 meters, where a standard 2-post vertical lift would fail.
Compact and Low Profile: As seen in image_ae18c0.jpg, the system features a rear-post design that requires no forward columns, keeping the front entry entirely open and unencumbered for wide luxury vehicles or sports cars.
Excellent for Exotic & Low-Profile Cars: Because the platform lowers entirely to the ground with a gentle approach angle, it is highly compatible with low-clearance sports cars and exotics (like the McLaren and Lamborghini pictured in image_ae18c0.jpg).

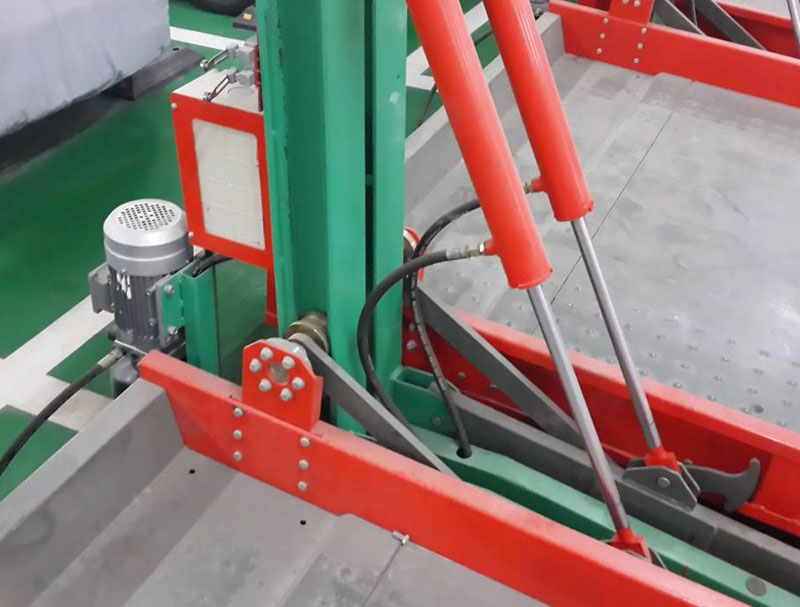

Simple Hydraulic Execution: Driven by reliable hydraulic cylinders and a compact power pack, the lift operates quietly, smoothly, and can be plugged into standard residential or light commercial power sources.
No Specialized Foundation Needed: Due to its smart balance and distribution of weight toward the rear structural frame, it can often be anchored directly onto a standard concrete garage slab without deep excavation.
3. Major Configurations and Design Elements

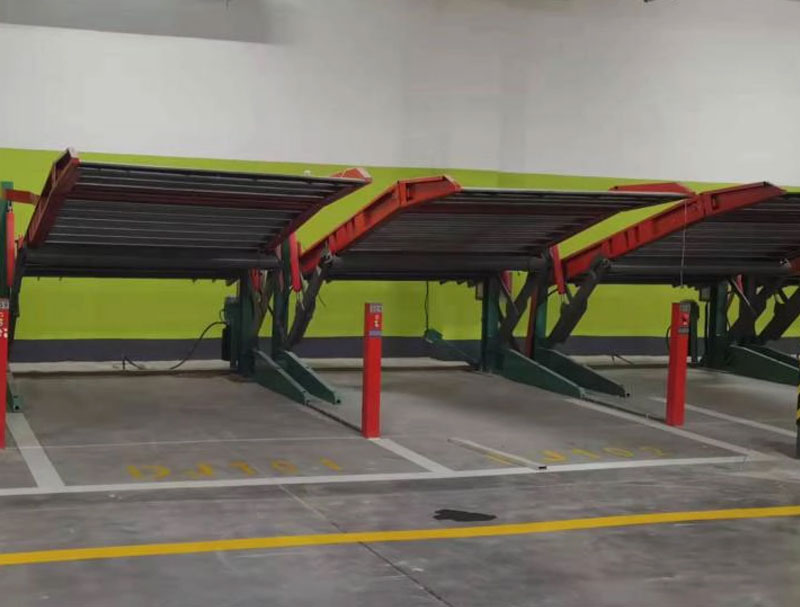

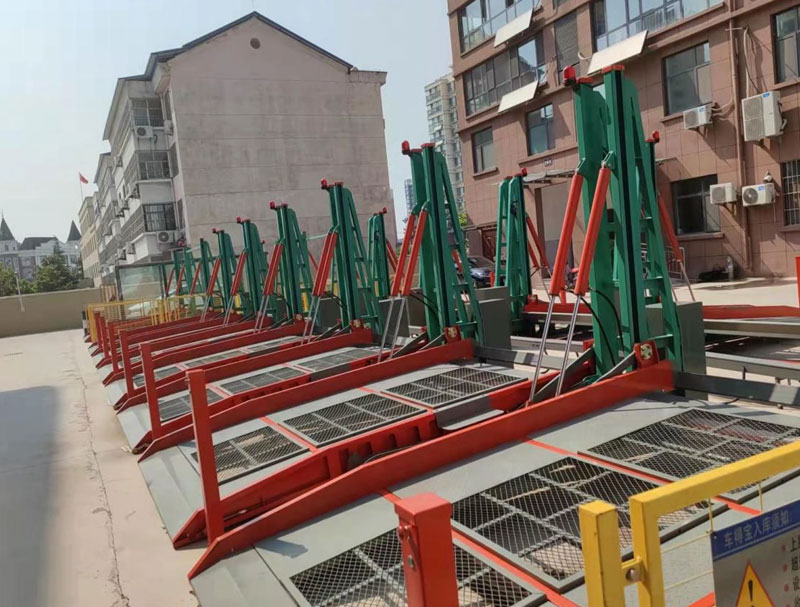

Rear-Post Design: Most tilting stackers feature two posts located strictly at the rear of the unit. This maximizes door-opening clearance for the lower vehicle, allowing drivers to exit the car comfortably without hitting a side column.
Adjustable Tilt Angle: High-quality models allow installers to adjust the maximum lift height and tilt angle during setup to perfectly customize the lift to the specific ceiling height of the property and the types of vehicles being stored.
4. Key Application Scenarios
Because it solves severe height limitations, the tilting lift is the go-to choice for specific niche environments:
Low-Ceiling Residential Garages: Perfect for homeowners or condo residents with private garages that have low clearance or overhead obstructions like garage door openers, pipes, or structural beams.
Luxury Villa Driveways & Car Ports: Ideal for outdoor courtyard walls or under car ports (as depicted in the open-air setting of image_ae18c0.jpg) where building a tall, bulky steel structure would ruin the home's aesthetics or violate neighborhood height limits.
Collector and Sports Car Storage: Favored by exotic car enthusiasts who want to maximize their garage space to store low-slung performance vehicles safely.
Urban Retrofits: Frequently used in older commercial basements or office park parking garages that were built decades ago with low ceilings, enabling property managers to instantly double specific parking spaces.
