Puzzle Parking System (Lift-Sliding Mechanical Garage):
As urban density increases, traditional parking lots can no longer keep up with the soaring demand for vehicle storage. The Lift-Sliding Mechanical Parking System (commonly known in global markets as the Puzzle Parking System) has emerged as one of the most efficient, cost-effective, and widely adopted semi-automated parking solutions globally.
Below is an in-depth guide to how puzzle parking systems work, their core benefits, major configurations, and real-world applications.
1. How a Puzzle Parking System Works
The operational principle of a puzzle parking system can be summarized as: "Independent matrix shifting through lifting and sliding." It utilizes an empty space (evacuation slot) to exchange positions of pallets, allowing any specific car to be retrieved independently.
Ground Level: Pallets can only slide horizontally (left and right). At least one space is left empty as a buffer zone.
Top Level: Pallets can only lift vertically (up and down).
Middle Levels (for Multi-Tier Systems): Pallets can both lift vertically and slide horizontally.
The Vehicle Retrieval Process:
The user requests a car via an IC card, PLC touch screen, or mobile app.
The smart control system identifies the target pallet.
The ground and middle-level pallets horizontally shift to the sides, creating a clear vertical vacancy channel directly beneath the target car.
The target pallet descends vertically to the ground level, allowing the driver to safely drive the car out.
2. Core Advantages of Lift-Sliding Parking Systems
Integrating a puzzle parking system offers significant spatial and financial benefits for property developers and facility managers:
Maximum Space Optimization: It exponentially multiplies parking capacity on the same land footprint, turning 2 traditional parking spaces into 5 to 20+ spaces
High Cost-Effectiveness: Compared to fully automated silo systems or constructing deep underground concrete garages, puzzle parking features a significantly lower per-space construction cost.
Modular & Flexible Layouts: It can be customized to fit various terrains—configured from 2 tiers to as high as 8 tiers, either outdoors or retrofitted into existing indoor basements.
Robust Safety Configurations: Advanced systems are equipped with multiple safety layers, including anti-fall devices, emergency stop buttons, over-length/over-width photoelectric sensors, and limit switches.
Low Maintenance & High ROI: Built with standardized steel structures and reliable PLC controls, these garages boast a long lifespan with minimal upkeep, ensuring a rapid return on investment.
3. Major Types and Configurations
Puzzle parking systems are highly versatile and can be categorized by their structure, drive mechanism, and installation style.
By Number of Tiers

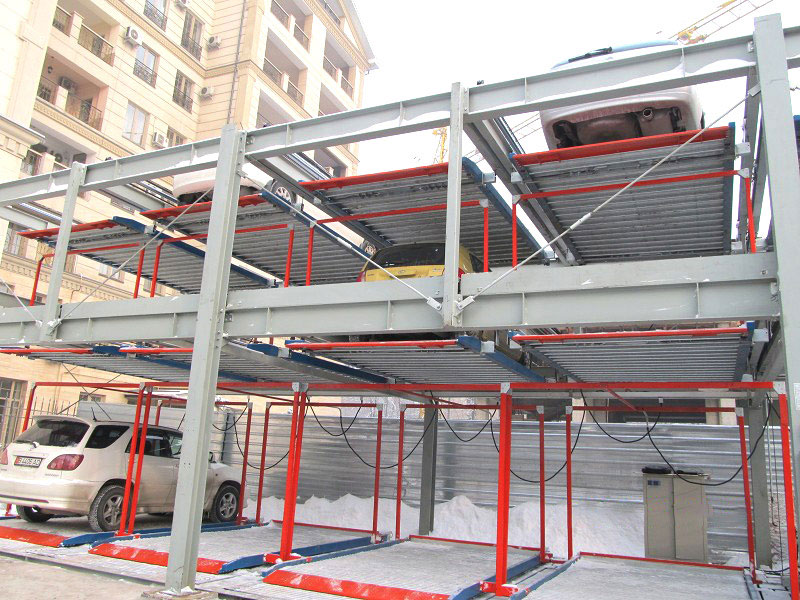

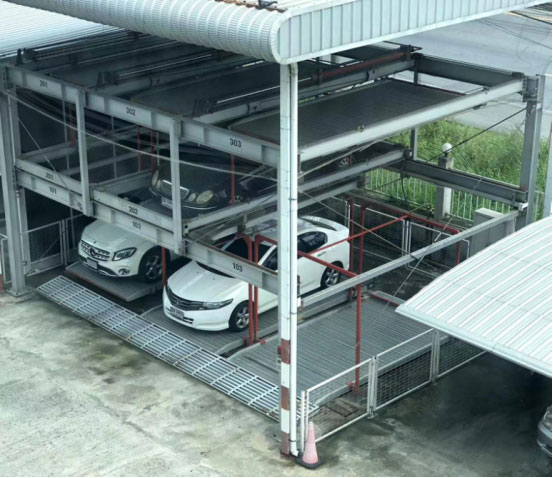

2-Level Puzzle Parking: The most common setup, typically deployed in low-ceiling basements or outdoor lots.

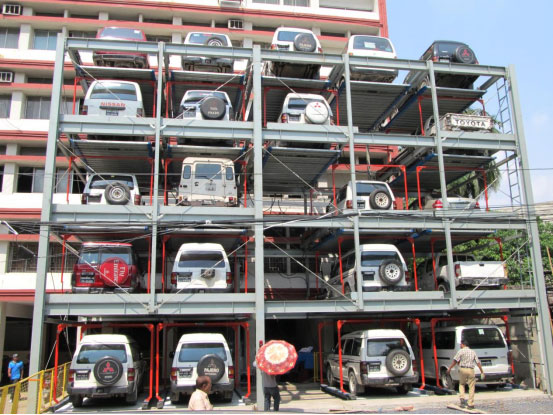

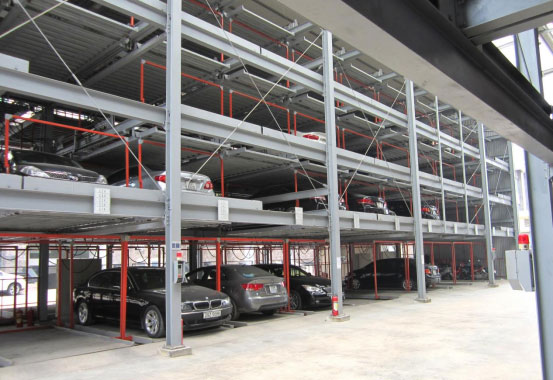

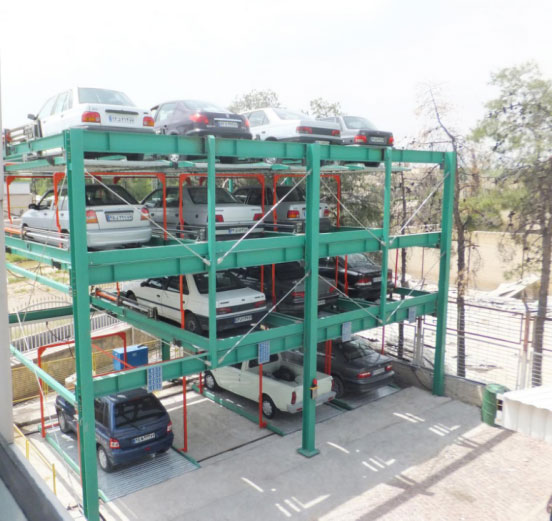

Multi-Level Puzzle Parking (3 to 15 Tiers): Maximizes vertical space; usually installed outdoors or in high-clearance open structures.
By Drive Mechanism
Chain Drive System: Driven by a motor-gearbox connected to high-strength chains. It is the most mature, reliable, and widely used mechanism due to its precise positioning.
Steel Wire Rope Drive System: Offers a smoother and quieter operation. It is often preferred in residential buildings where noise reduction is a priority.
Hydraulic Drive System: Driven by hydraulic cylinders. It provides fast lifting speeds and quiet mechanics, though it requires specialized maintenance in extreme weather conditions.
By Installation Layout
Above-Ground Type: Built entirely on the ground level, ideal for open-air yards and commercial perimeters.
Pit-Type (Underground Combo): Utilizes a subterranean pit (e.g., Pit -1 + Ground 1, or Pit -1 + Ground 2). The underground cars can lift up to the surface, maintaining a sleek, low-profile look that doesn't block building views.
4. Key Application Scenarios
Urban Residential Renovations: Ideal for older residential communities facing severe parking shortages. Property managers can repurpose small green spaces or alleyways into multi-tier parking nodes.
Commercial Complexes & Office Buildings: Adding puzzle parking to commercial basements (requiring a clear height of over 3.6 meters) allows developers to double their parking inventory without expanding the building's footprint.
Hospitals and Public Facilities: Helps mitigate high-peak traffic bottlenecks in high-density public zones, providing quick turnover for visitors and staff.
Industrial Parks and Logistics Hubs: Enables centralized, orderly fleet and employee vehicle management for large enterprises.
