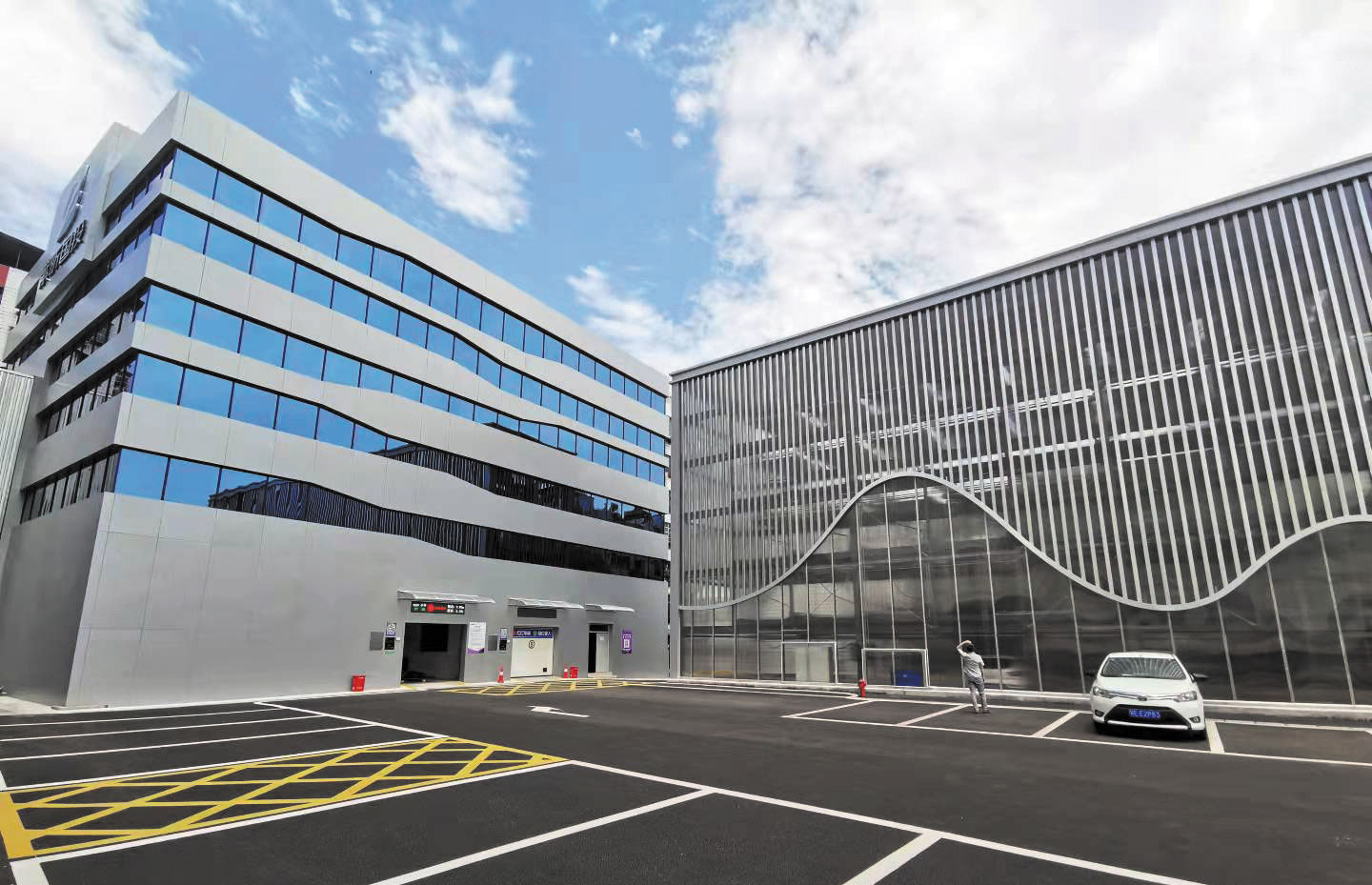

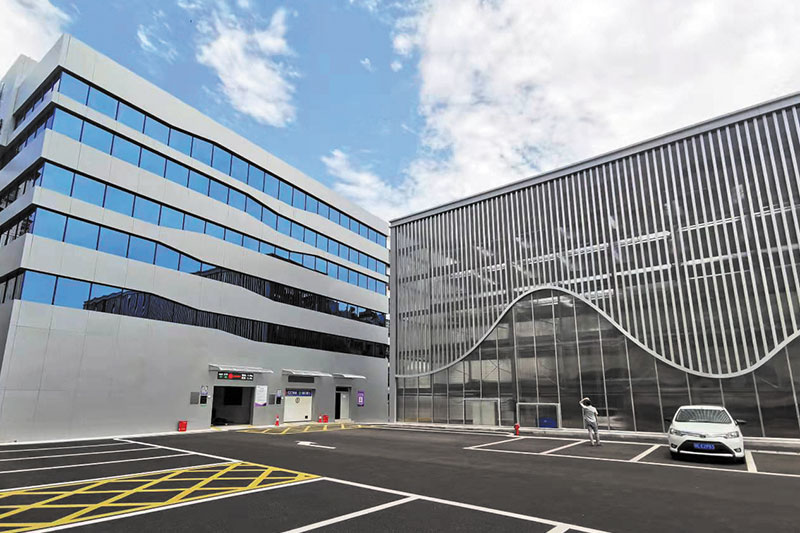

Intelligent Parking Solution for Zigui Transportation Bureau

Project Overview

Project Name

Intelligent Parking Solution for Zigui Transportation Bureau

Country

China

City

Zigui

Application

Transportatiion

System Type

puzzle parking equipment/ cabinet vertical parking equipment

Total Parking Spaces

62/103

Floors

6

User operation method

LCD panel, Button/IC card

Project duration

2020.10.24-2021.5.21 (210 days)

Special Features

EV Charging / Quick Access / Unattended Operation

Technical Specs

Vehicle Size

5300×1900×1550，80 sedans.
5300×1900×2050，85 SUVs

Max Vehicle Weight

2350 kg

Retrieval Time

60-120 seconds

Automation Level

Semi-automatic

Structure

Steel structure

Certifications

CE / ISO / SGS

Site Conditions

Clear Height

16 meters

Footprint

465 ㎡（25m x 18.6m）

Onground/Underground/Both

Onground

Civil Constraints

Seismic resistance, waterproofing, foundation bearing capacity,high temperatures, hot and humid conditions,fire resistance
