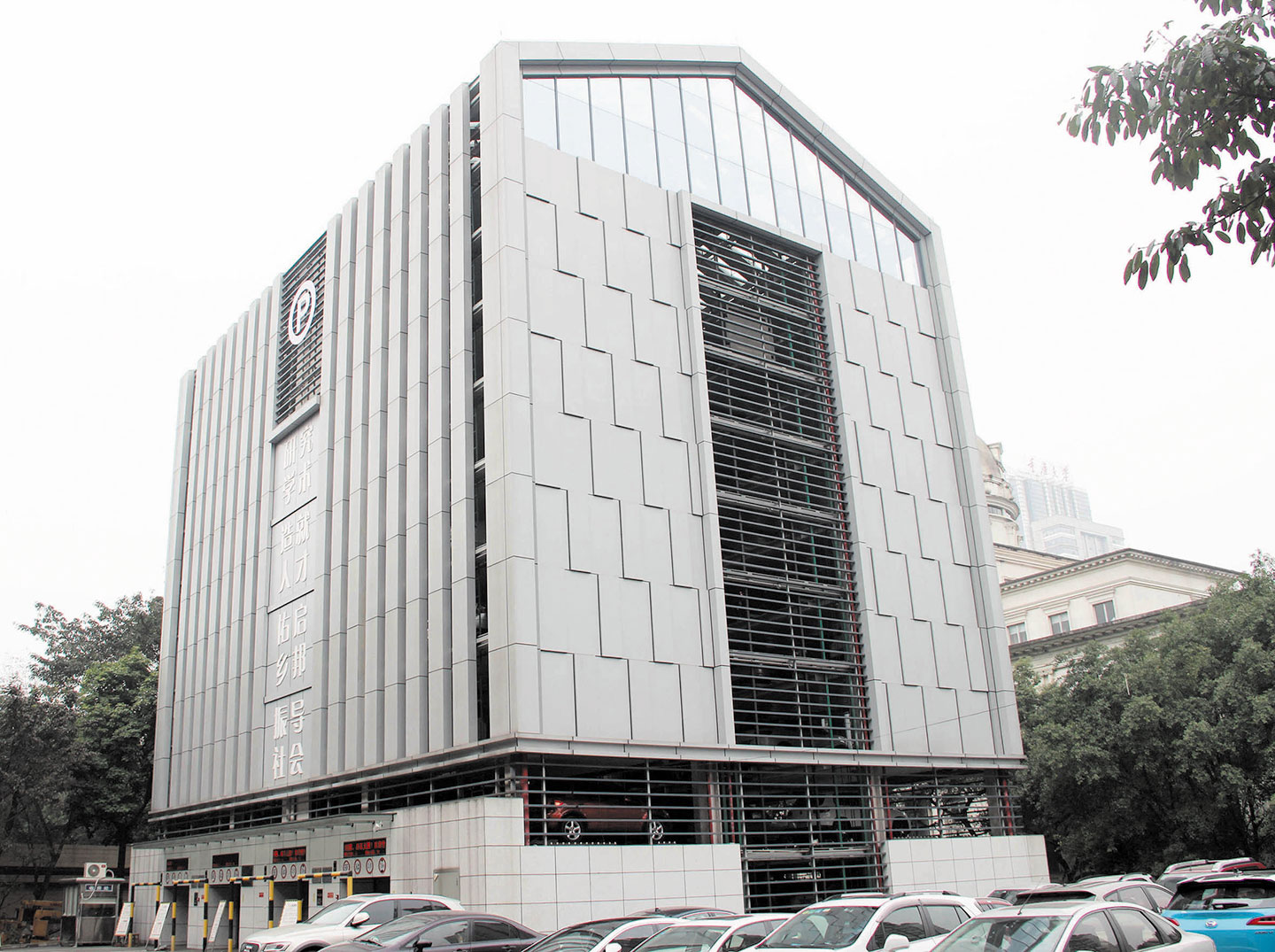

Chongqing University

Project Overview

Project Name

Chongqing University

Country

China

City

Chongqing

Application

University

System Type

Dual-car Automatic Cabinet Vertical Parking Equipment

Total Parking Spaces

199

Floors

11

User operation method

LCD panel, Button/IC card

Project duration

2018.12.01-2019.05.23 (174 days, excluding acceptance inspection)

Special Features

Technical Specs

Vehicle Size

5300×1900×1550，140 sedans；5300×1900×1900，59 SUVs

Max Vehicle Weight

2300 kg

Retrieval Time

60 m /minutes

Automation Level

Automatic

Structure

Steel structure

Certifications

CE / ISO / SGS

Site Conditions

Clear Height

27 meters

Footprint

590.59㎡ (28.6m x 20.65m)

Onground/Underground/Both

Onground

Civil Constraints

Seismic resistance, waterproofing, foundation bearing capacity,high temperatures, hot and humid conditions,fire resistance
