When a 2-level lift isn't enough to meet high-density demand, the 4-Post Multi-Level Stacker offers an aggressive vertical scaling solution. Supported by four rigid structural posts, these systems can stack vehicles three or even four high, making them a powerhouse for commercial and high-capacity car storage.
1. How a 4-Post Multi-Level Stacker Works
The 3-level system shown in image_a3a034.jpg operates on a strictly vertical, dependent sequence.
The Stacking Order: The system features a ground parking space, a middle lifting platform, and a top lifting platform.
Dependent Retrieval: To retrieve the car on the top level, both the ground-level vehicle and the middle-level vehicle must be driven out. To retrieve the middle car, only the ground car needs to be removed.
The Operation:
The ground car is cleared.

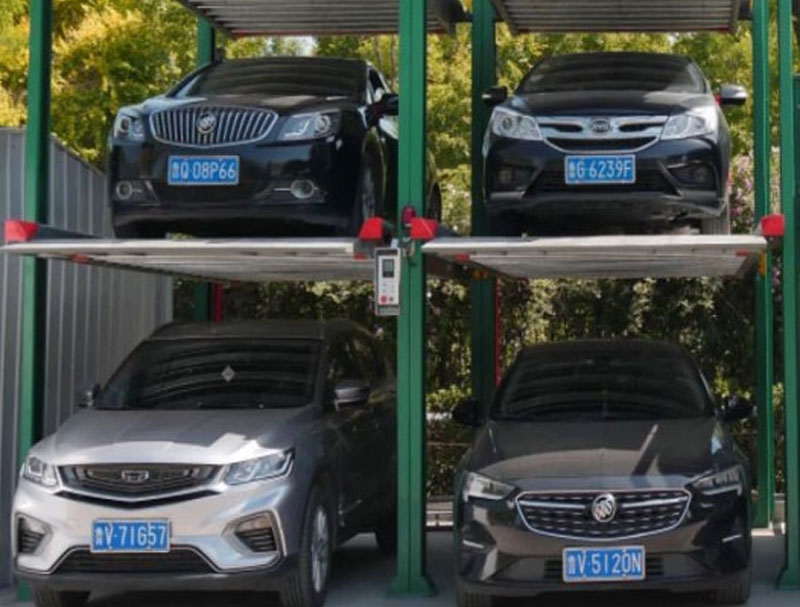

The operator uses the centralized control panel (visible on the center post in image_a3a034.jpg) to lower the middle or top platform to the ground.
The chosen vehicle is driven off, and the platforms are hoisted back up into their locked positions before the lower vehicles return.
2. Core Advantages of 4-Post Stackers
Tripled Space Efficiency: It turns a single parking footprint into three distinct vehicle slots, offering a 200% increase in capacity over standard ground parking.
Superior Structural Stability: With four columns anchoring the weight, 4-post lifts offer significantly higher load capacities and structural rigidity compared to 2-post lifts. This makes them ideal for outdoor installations exposed to wind loads.

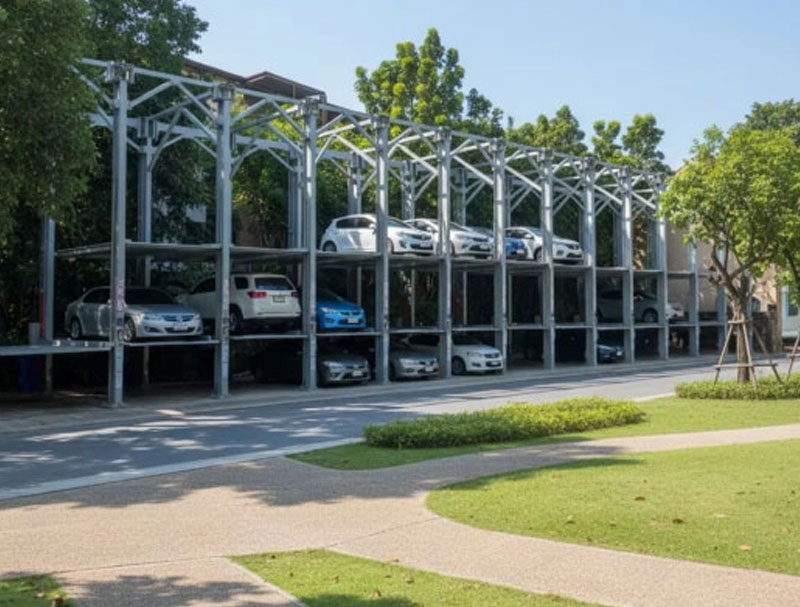

Shared-Post Cost Savings: As demonstrated in image_a3a034.jpg, units can share adjacent posts when installed in rows. This drastically reduces the total steel weight, lowers equipment costs, and shrinks the overall installation footprint.
Heavy-Duty Safety Features: Multi-level stackers employ heavy-duty mechanical locking hooks at every level, anti-snapping chain/wire rope protection, limit switches, and optical sensors to ensure the upper platforms remain safely locked in place.
Lower Infrastructure Cost: Compared to building multi-story concrete parking structures, these steel stackers can be erected quickly on a flat concrete slab, saving immense civil engineering and construction costs.
3. Major Types and Configurations
3-Level (Triple) vs. 4-Level (Quad) Stackers: Triple stackers (3 cars high, as seen in image_a3a034.jpg) are the industry standard for standard SUVs and sedans. Quad stackers stretch even higher, usually reserved for specialized long-term storage facilities with high clearances.
Hydraulic Cylinder vs. Motor-Traction Driven:
Hydraulic: Uses powerful hydraulic cylinders and high-strength lifting chains. Known for fast lifting speeds and smooth acceleration.
Motor-Traction: Driven by electric motors, steel cables, and gearboxes. Often preferred for ultra-high configurations where long vertical travel is required.
Wide vs. Standard Platforms: Platforms can be customized in width to safely accommodate everything from compact sedans to full-size luxury SUVs.
4. Key Application Scenarios
Because of the multi-car dependency, 4-post triple stackers are best deployed in environments with organized vehicle management or extended storage times:
Commercial Valet & Public Lots: High-traffic urban commercial centers use these to cram maximum inventory into valet-managed surface lots.

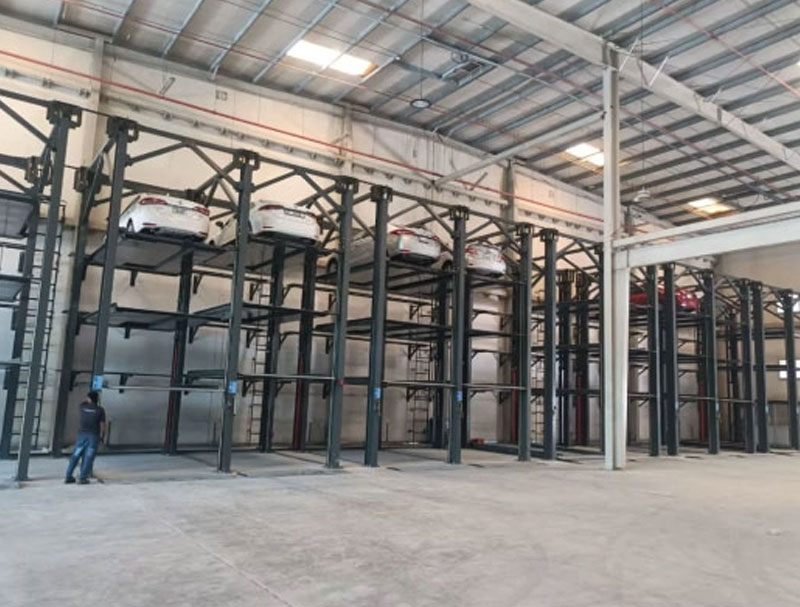

Car Manufacturing Plants & Dealerships: Ideal for holding massive quantities of transit-ready inventory, showroom vehicles, or customer cars awaiting service in a minimal footprint.

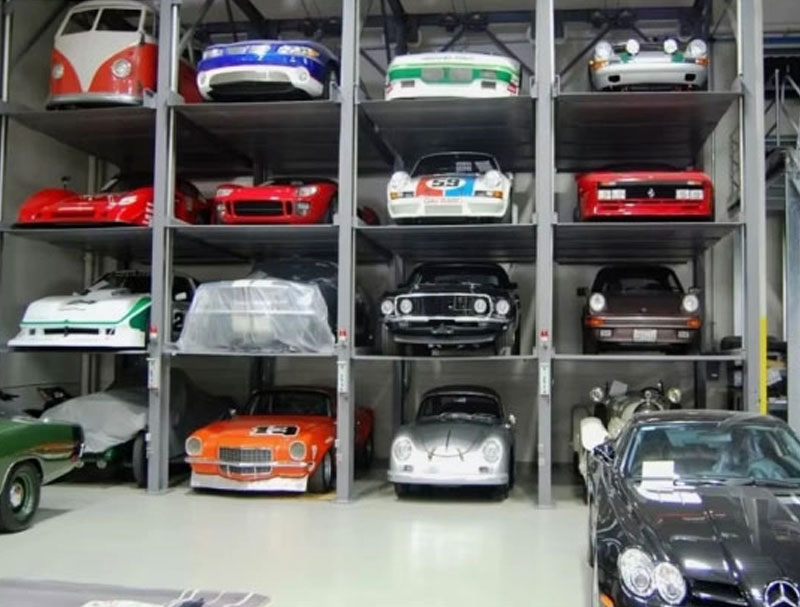

Long-Term Vehicle Storage & Logistics Hubs: Perfect for airport long-term parking, classic car storage facilities, impound lots, and port logistics where vehicles sit for days, weeks, or months at a time.
Car Rental Fleets: Allows rental agencies located near airports or tight city centers to pool their available fleet closely together for rapid turnaround by lot attendants.
