A 2-Post Parking Lift (also known as a dependent parking lifter or stacker) is a hydraulic or mechanical hoist designed to stack two vehicles vertically on top of one another. It is the go-to solution for maximizing residential garages, commercial valets, and low-traffic parking areas.
1. How a 2-Post Parking Lift Works
Unlike puzzle parking systems that operate on a shifting matrix, a 2-post lift works on a dependent, purely vertical lifting mechanism.
The "Dependent" Rule: The upper vehicle cannot be lowered or retrieved unless the lower parking space is completely empty.
The Process: To retrieve the upper car, the lower car must first be driven out. The operator then uses a key-switch, button, or remote control to lower the upper pallet to ground level. Once the upper car is driven off, the pallet can be raised back up, allowing the lower car to park underneath again.

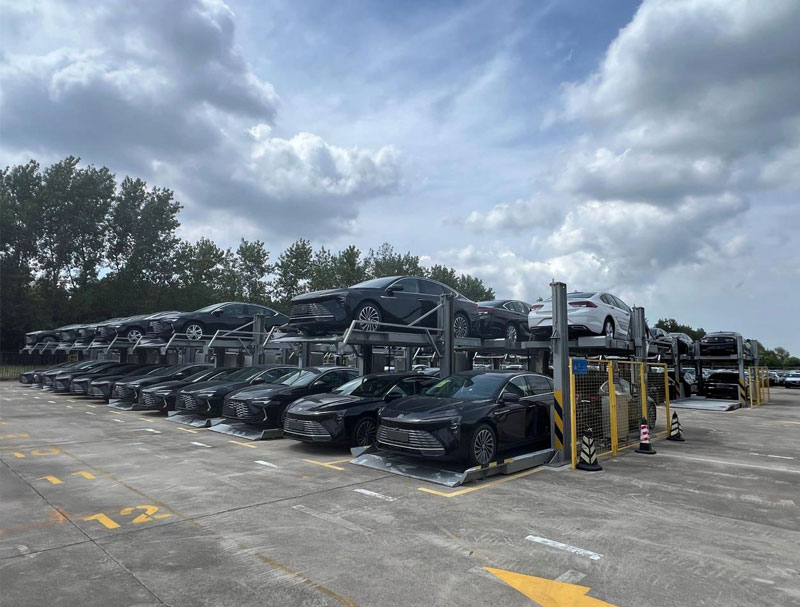

Shared-Post Design: As seen in your image, multiple units can be linked together using "shared posts" (the middle column serves both platforms). This saves significant ground space and structural costs compared to standalone units.
2. Core Advantages of 2-Post Parking Lifts
Ultra-Compact Footprint: Because it relies on only two structural posts per unit (or shared posts for multiple units), it leaves the ground area underneath completely open and unobstructed for the lower vehicle.
Highly Cost-Effective: It has a much lower initial investment, simpler installation, and fewer moving parts than puzzle or tower parking systems.
Low Ceiling Requirements: Many models are designed for low-clearance residential garages, requiring as little as 3.2 to 3.6 meters of ceiling height depending on the vehicles being stacked.
Simple Maintenance: Powered primarily by a hydraulic pump pack and heavy-duty lifting chains/cylinders, the mechanical components are straightforward and highly reliable, resulting in minimal long-term upkeep.
Excellent Safety Features: Equipped with mechanical anti-fall locks that automatically engage at various heights, hydraulic overflow valves, and limit switches to prevent over-travel.
3. Major Types of 2-Post Parking Lifts

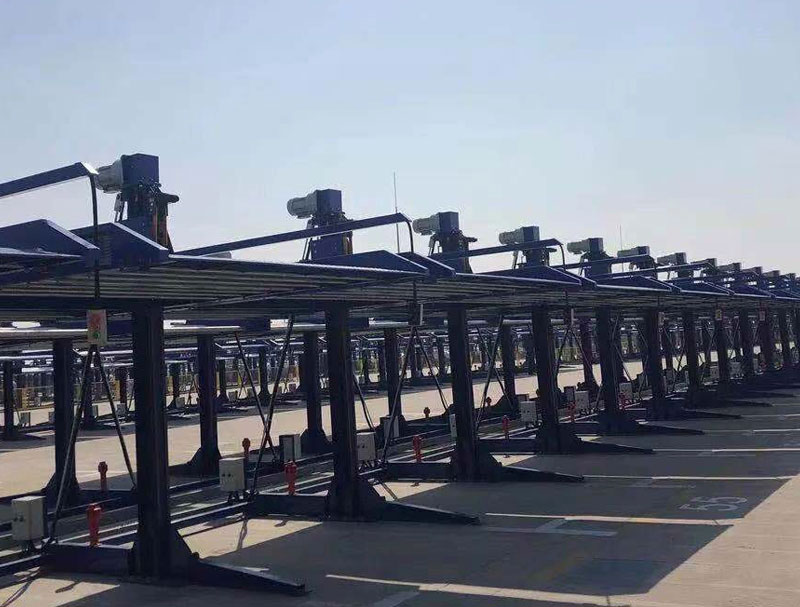

Standalone vs. Shared-Post: Standalone units operate completely independently with their own two posts. Shared-post units (like the image provided) link multiple platforms together in a row, minimizing the structural profile and reducing installation costs for commercial setups.
Hydraulic vs. Mechanical: * Hydraulic: The industry standard. Uses hydraulic cylinders for rapid, smooth, and quiet lifting.
Mechanical/Chain: Uses electric motors and direct gear-and-chain mechanisms.
Tilted Platform Lifts: A specialized sub-type where the upper platform tilts forward. This is specifically engineered for extremely low-ceiling indoor garages to accommodate the slope of a car's hood.
4. Key Application Scenarios
Because of its dependent nature, the 2-post parking lift is ideal for environments where parking is managed or vehicles stay parked for extended periods:
Private Residential Garages & Car Enthusiasts: Perfect for homeowners or collectors who want to park two cars in a single-car garage space (e.g., storing a seasonal sports car on top and parking a daily driver underneath).
Commercial Valet Parking: Highly effective in commercial lots, hotels, and restaurants where valets manage all car keys and can easily move the bottom car to retrieve the top one.
Car Dealerships & Detailing Shops: Used extensively by automotive businesses to maximize vehicle inventory display or create extra vehicle staging space inside workshops.
Long-Term Storage Facilities: Ideal for airport parking extensions, car rental storage lots, and impound yards where quick, independent retrieval is not a constant priority.
